// Strong

Robust and reliable.

// The rotor

Our rotor has been developed to meet the high thermal and mechanical demands of cargo bikes and LEVs, and is characterized by a long service life. An innovative production process, a special hardening treatment, and subsequent grinding ensure consistent and high friction values with reduced wear. This makes the rotor particularly robust and reliable in all weather conditions.

The friction ring of the rotor has been engineered to work in perfect harmony with the brake pad. With a height of 20 mm, the friction ring provides a large contact surface to achieve maximum braking power. This allows for stable and consistent performance with lower system pressure and reduced hand force. An optimal choice of materials for both pad and disc also ensures minimal wear. Our discs are produced 100% in Germany.

// Technical specifications

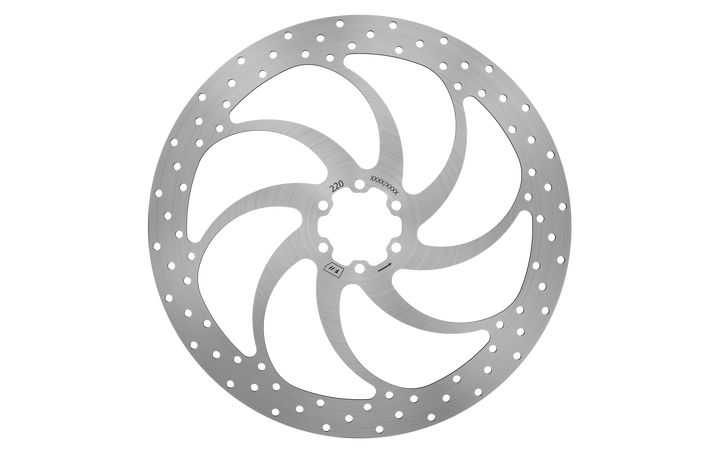

Fahrwerker Rotor 200mm
DIN 79010 compliant
20mm friction surface
2mm thickness
Diameter 180mm, 200mm, 220mm

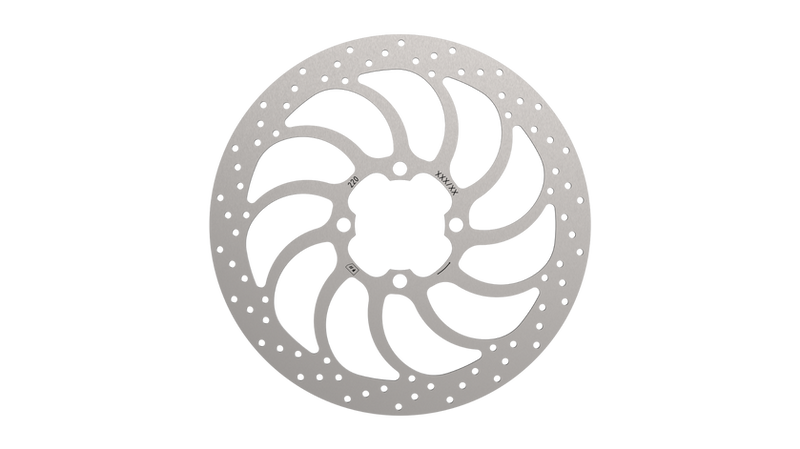

6-bolt standard and 4-bolt LK 65mm
High heat absorption capacity
Individual bolt circle on request
Made in Germany
